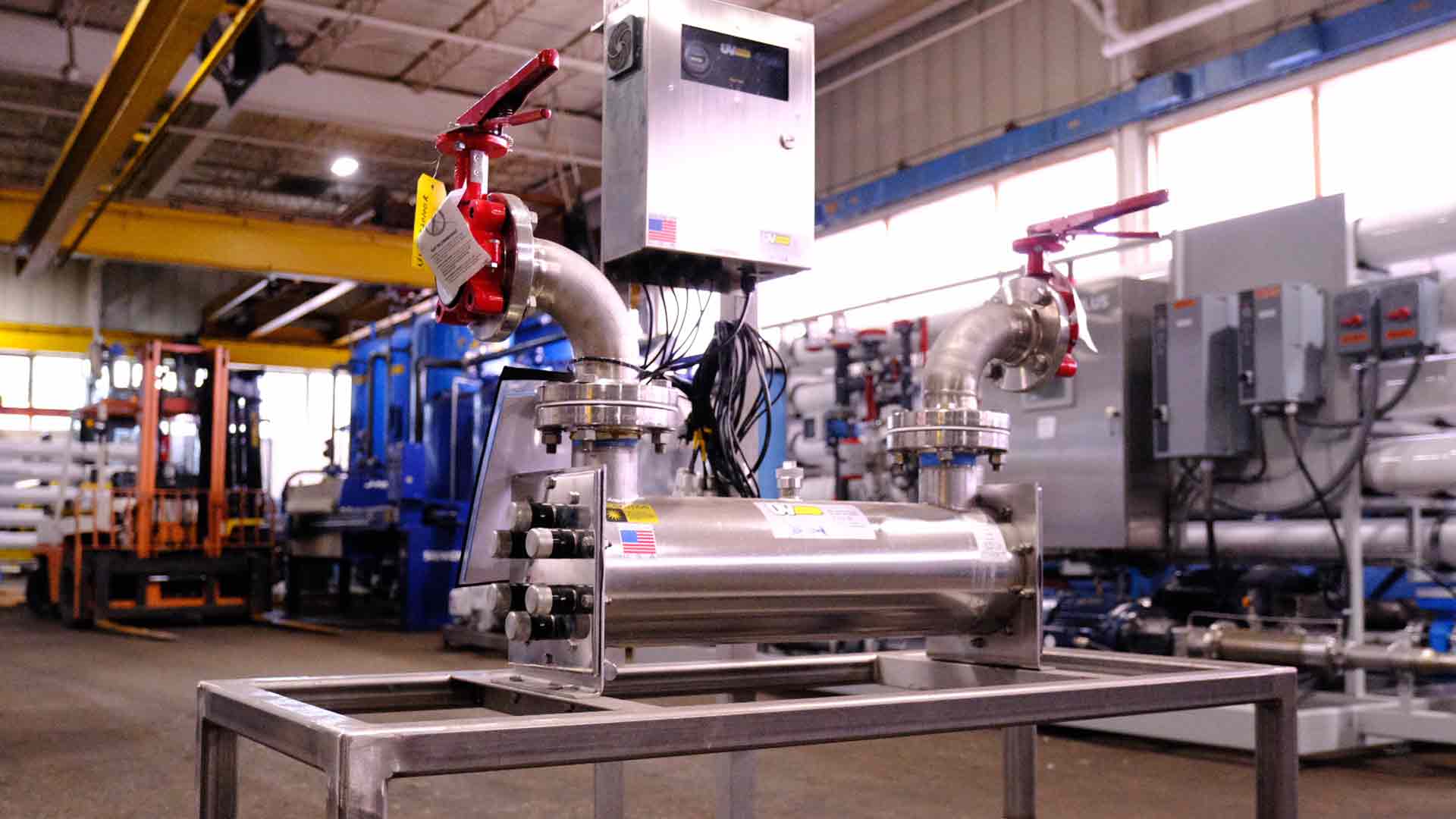

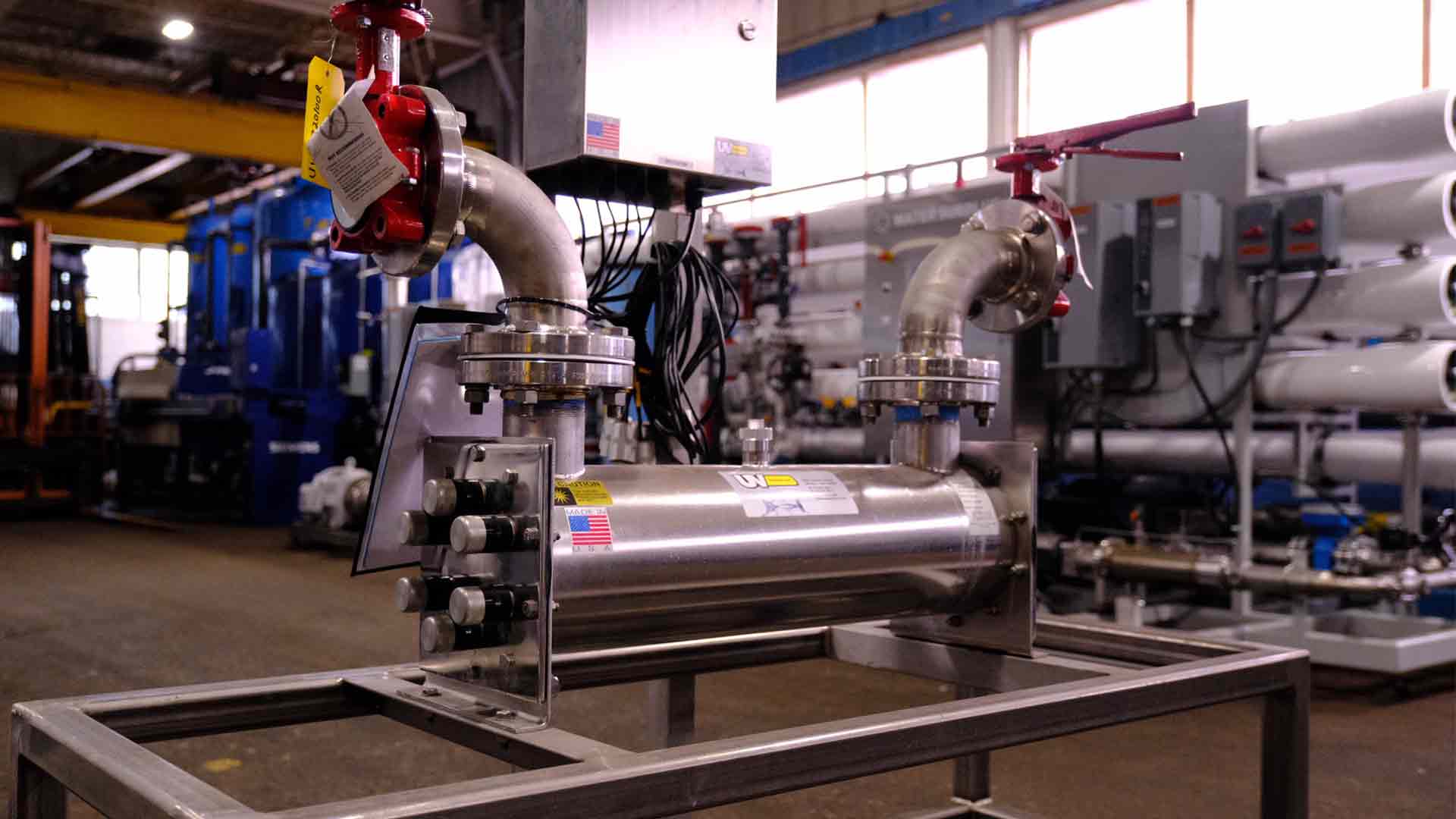

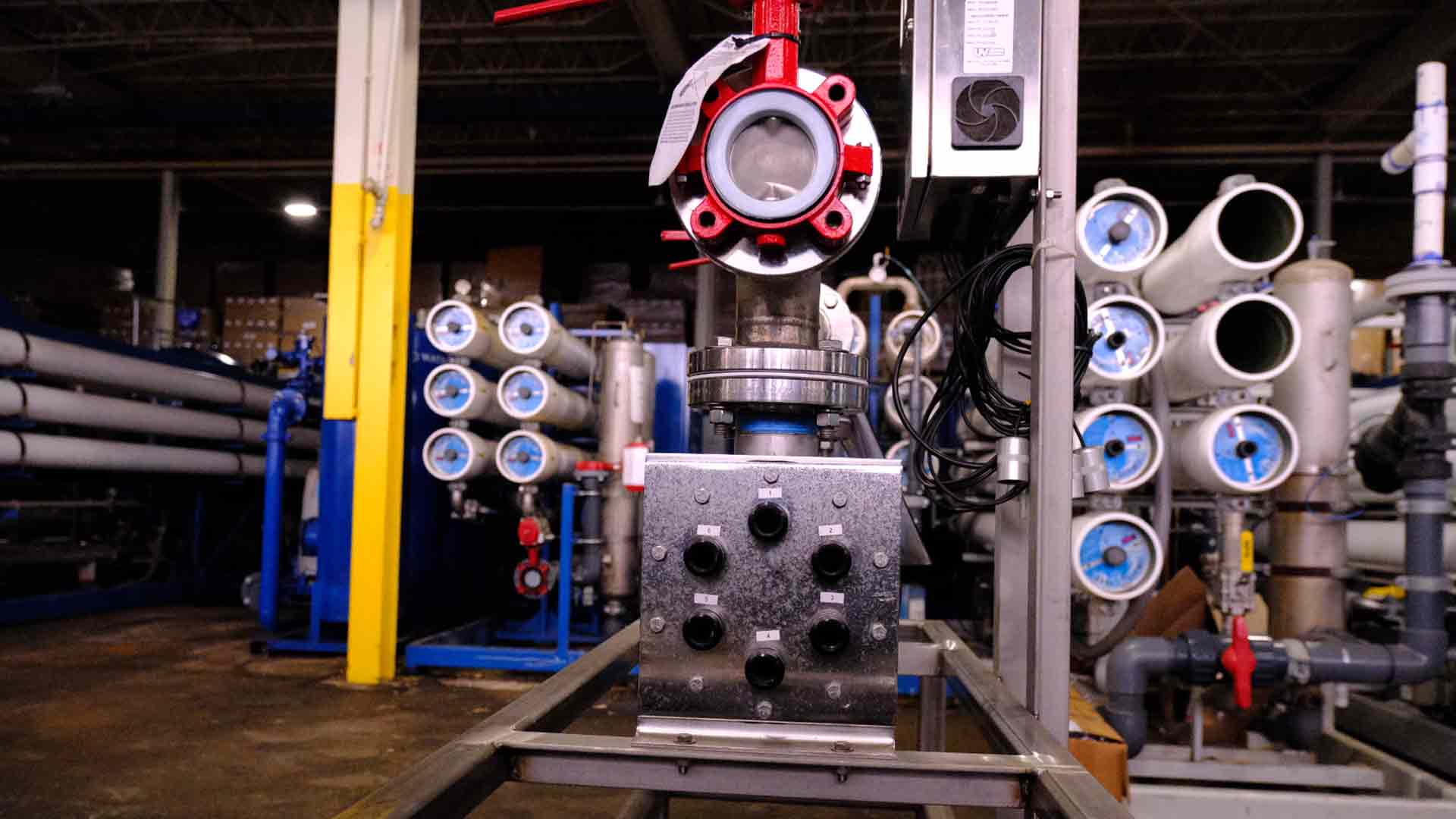

This equipment is capable of handling 120-195 gpm of water for Ozone destruction. It has 6 lamps (254nm) in the ballast and requires a single power drop of 120VAC, 1ph, 60Hz for operation. The basic controller shows if all the lamps are functioning properly and has a totalizer showing the total hours of operation. Unit consits of (2) 3″ Stainless steel light traps with teflon gaskets and teflon lined isolation valves. The assembly is mounted on stainless skid. The UV can also be used for the purpose of disinfection as well.
