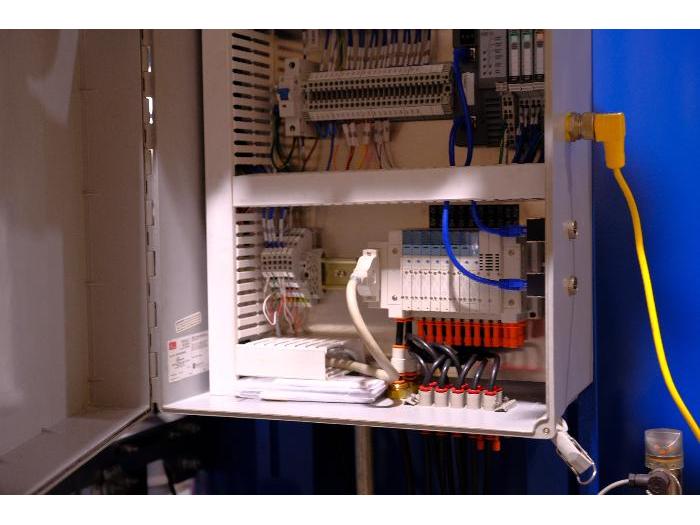

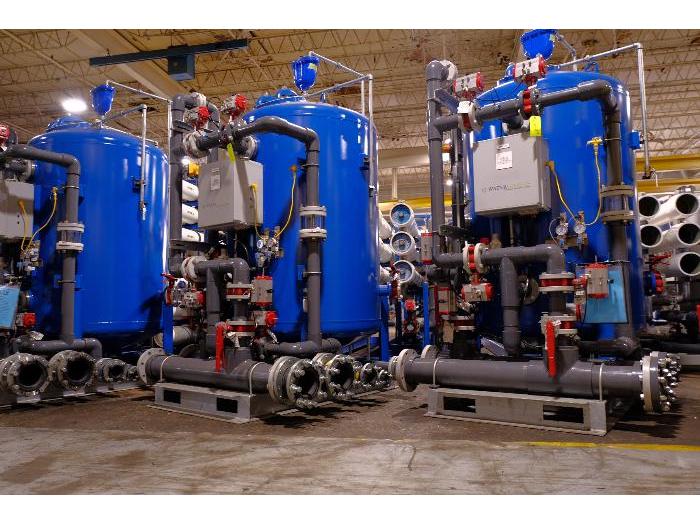

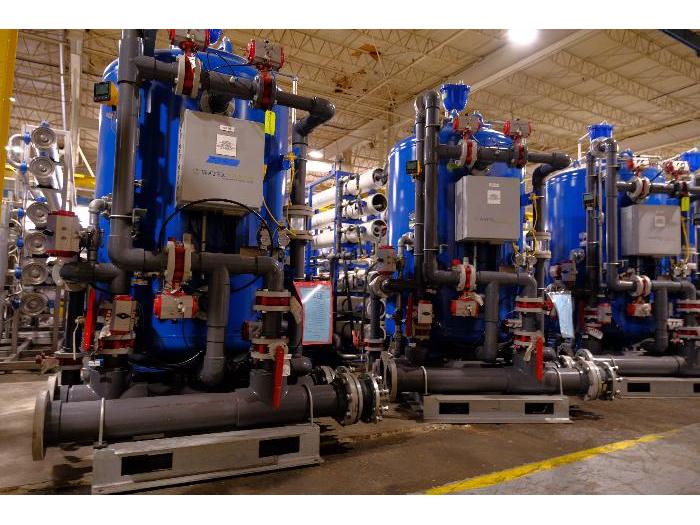

Automated media filter with 48″ diameter x 60″ side sheet. Each individual tank is capable of operating in any array from 1-6 (There are six tanks in stock capabale of operating in any combination up to six). 304 stainless steel hub and lateral design is compatible with a variety of filter medias including OxiPlus75™, OxiPlus12™, SandPlus™, Anthracite, and Sand/Anthracite. System is rated at 100 psi, ASME code, and can treat from 110 gpm to 565 gpm based on the filter media used and the chemistry of the inlet water. Automatic air actuated valves control forward flow vs. backwash flow utilizing the same feed water or separate source water for backwash of the filters. Two elliptical Yoke-style ASME design 12″ x 16″ manways provide access to the underdrain system and allow for ease of media loading. Includes automatic air release and manual vent valves. Full instrumentation is stand-alone PLC controlled and capable of full data logging and remote monitoring. Easy field set up and prefabricated interconnecting wiring make for a fast field install. Empty shipping weight: 2500 lbs. See technical document below for additional specifications.
SPECIFICATIONS:
Tank Size Diameter X Side Sheet48″ Dia. x 60″ Side Sheet
Material of ConstructionPressure Vessel rated CS
Lining MaterialBar Rust 233H
Type of SupportWide Flange 6″ x 15 lb/ft2 Galvanized I-beam Skid
Influent and Effluent Size and Connection TypeInlet: 6″ PVC ANSI 150 PSI Flanged, Process Outlet: 6″ PVC ANSI 150 PSI Flanged, Backwash Outlet: 3″ Travel Stop Butterfly Valve, Drain Outlet: 1/2″ SST Ball Valve
Manway Size and Location(2) Ellip Yoke-style 12×16, EPDM Gasket, (Upper and Lower Side Shell)
Main Face Piping Size, Material and Valve Type6″, Schedule 80 PVC, Auto/Manual Butterfly
